Differential Inverse Kinematics

Introduction

In the context of this project, the goal of the inverse kinematics task is to compute joint velocities to track the desired position of the Center of Mass and foot poses. Each of this goal is called a task. Walking requires several tasks to be handled at the same time:

Keeping the stand foot exactly at a desired 6D pose
Tracking the swing foot trajectory
Tracking the CoM trajectory
Maintaining the torso straight (postural task)
Locking some joints as the LIPM model relies on some assumptions on the upper body restrained motion.
Constraints due to the joints properties (position and/or velocity limits)

Those tasks might be concurrent. Therefore, the inverse kinematics is well-suited to be seen as an optimization problem with tasks being either a cost to reduce or a constraint to fulfill. A way to solve this is by using a hierarchical Quadratic Program where each task is assigned with a priority (tracking the CoM is more important that postural task for instance). In practice it is hard to find an open-source solver for this kind of optimization problem. Therefore it is modelled as a QP with different weights for each task. A task with high priority will have a higher weight than a low priority task. This is the approach used for instance by the pink library from which this part is inspired.

Kinematic task

The goal of a task is to reduce the error (residual) between the desired pose and the actual pose of a frame on the robot. A detailed explanation on how to compute this error for a pose and how to define it as an optimization problem is described in this article.

Tasks

We detail here each specific task that we need to fulfill when solving the inverse kinematics problem. For the implementation, we rely on the Pinocchio library to compute Jacobian and CoM position.

1. Fixed (Stance) Foot

The stance foot is a hard equality constraint in the QP:

\[ J_{\text{ff}}\, \Delta q = e_{\text{ff}} \]

where \(J_{\text{ff}}\) is the Jacobian of the fixed foot kinematic task, \(\Delta q\) the joint-space increment, and \(e_{\text{ff}}\) the pose task residual.

This constraint ensures the stance foot remains fixed in the world frame. It enforces a no-slip contact at velocity level.

2. Swing (Moving) Foot

Residual and Jacobian \(e_{mf}, J_{mf}\) enter the cost as a weighted least squares term, allowing the swing foot to track its desired trajectory.

3. Torso Orientation

We want to maintain the torso orientation. We select only the angular part of the Jacobian and residual with the matrix S = [0, I]:

\[ e_{\text{torso}} = S\, e_{\text{torso6}}, \quad J_{\text{torso}} = S\, J_{\text{torso6}}. \]

This aligns the torso without constraining its position.

4. Center of Mass

The center of mass is only constrained by its position. This is modelled as a cost in the optimization problem. The jacobian \(J_{\text{com}}\) is the jacobian of the center of mass. The residual is defined below:

\[ e_{\text{com}} = (x_{\text{com}}^{\star} - x_{\text{com}}), \quad \]

This task pulls the CoM toward the desired position.

Optimization Problem

We want to solve for \(\Delta q\) the QP:

\[\begin{equation} \begin{aligned} \min_{\Delta q}\quad & \tfrac{1}{2}\,\Delta q^\top H \Delta q + g^\top \Delta q \\ \text{s.t.}\quad & A \Delta q = b \end{aligned} \label{eq:qp_eq_only} \end{equation}\]

where

\[\begin{align} H &= J_{\mathrm{com}}^\top W_{\mathrm{com}} J_{\mathrm{com}} + J_{\mathrm{torso}}^\top W_{\mathrm{torso}} J_{\mathrm{torso}} + J_{\mathrm{mf}}^\top W_{\mathrm{mf}} J_{\mathrm{mf}} + \mu I, \\[12pt] g &= - J_{\mathrm{com}}^\top W_{\mathrm{com}} e_{\mathrm{com}} - J_{\mathrm{torso}}^\top W_{\mathrm{torso}} e_{\mathrm{torso}} - J_{\mathrm{mf}}^\top W_{\mathrm{mf}} e_{\mathrm{mf}}, \end{align}\]

and

\[\begin{align} A &= J_{ff} & b &= e_{ff} \end{align}\]

The term \(\lambda I\) provides Tikhonov damping to improve numerical stability

This is solved with qpsolvers.solve_qp (OSQP backend). The solution is then integrated using Pinocchio to compute the desired joints position.

Example

Inverse kinematics are computed to track CoM and foot trajectories using the Talos model. This produces a full kinematic walking sequence without dynamic simulation.

Run the following command:

docker run --rm -it -p 7000:7000 \
  -p 6000:6000 ghcr.io/rdesarz/biped-walking-controller \
  python examples/example_3_walk_inverse_kinematic.py \
  --path-talos-data "/"

Then go to the following address in your browser: http://127.0.0.1:7000/static/.

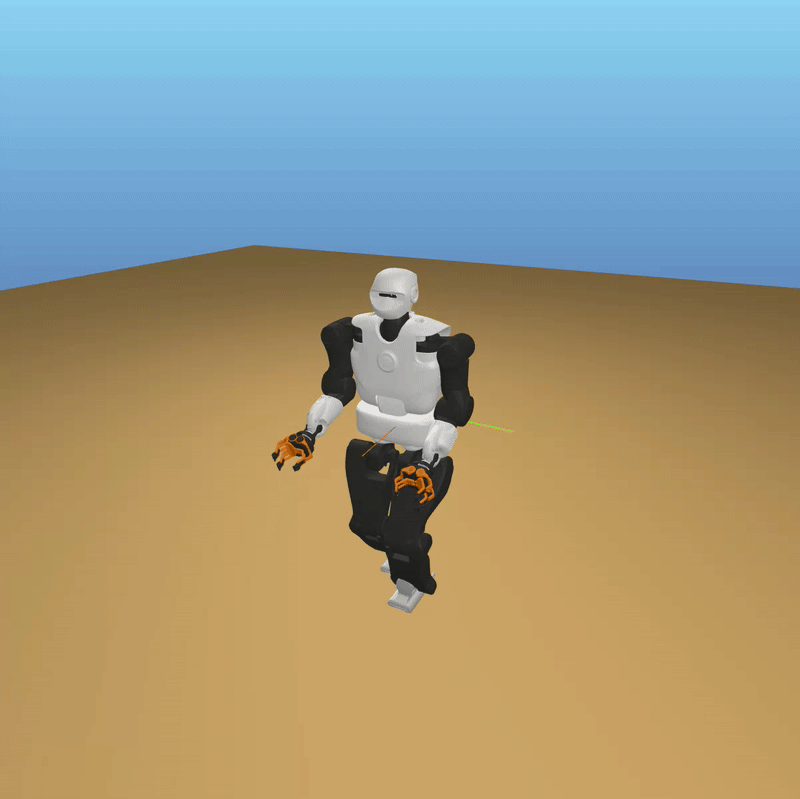

The result should look like this:

References

Caron, S.
Jacobian of a kinematic task and derivatives on manifolds.
Available online at https://scaron.info/robotics/differential-inverse-kinematics.html, accessed 2025.
(Detailed explanations and examples for frame kinematics, Jacobian computation, and task-space control using Pinocchio.)
Caron, S.
Differential inverse kinematics.
Available online at https://scaron.info/robotics/jacobians.html, accessed 2025.
(General introduction to differential inverse kinematics.)
Caron, S.
Pink: Python inverse kinematics based on Pinocchio
License Apache-2.0
Available at https://github.com/stephane-caron/pink 2025

Code API

InvKinSolverParams `dataclass`

InvKinSolverParams(fixed_foot_frame, moving_foot_frame, torso_frame, model, data, w_torso, w_com, w_mf, mu, dt, locked_joints=None)

Parameters for inverse-kinematics QP with CoM, feet, and torso tasks.

Attributes:

Name	Type	Description
`fixed_foot_frame`	`int`	Pinocchio frame id of the stance foot (hard equality).
`moving_foot_frame`	`int`	Pinocchio frame id of the swing foot (soft task).
`torso_frame`	`int`	Pinocchio frame id for torso orientation task (angular only).
`model`	`Model`	Pinocchio kinematic model.
`data`	`Any`	Pinocchio data buffer associated with `model`.
`w_torso`	`float`	Weight of torso angular task in the QP cost.
`w_com`	`float`	Weight of CoM task in the QP cost.
`w_mf`	`float`	Weight of moving-foot 6D task in the QP cost.
`mu`	`float`	Damping on joint velocities in the QP (Tikhonov term).
`dt`	`float`	Time step used by caller; not used here directly but kept for API symmetry.
`locked_joints`	`list[int] \| None`	Optional list of joints or velocity indices to lock. Each element can be: - a Pinocchio joint id j in [0, model.njoints), which locks its velocity span - or a direct velocity index v in [0, model.nv)

solve_inverse_kinematics

solve_inverse_kinematics(q, com_target, oMf_fixed_foot, oMf_moving_foot, oMf_torso, params)

One-step inverse kinematics via QP with a hard stance-foot constraint.

Problem

Minimize w_com || J_com dq - e_com ||^2 + w_torso || J_torso dq - e_torso ||^2 + w_mf || J_mf dq - e_mf ||^2 + mu || dq ||^2 subject to J_ff dq = e_ff (fixed-foot 6D equality)

Parameters:

Name	Type	Description	Default
`q`	`(ndarray, shape(nq))`	Current configuration.	required
`com_target`	`(ndarray, shape(3))`	Desired CoM position in world.	required
`oMf_fixed_foot`	`SE3`	Desired world pose of stance foot.	required
`oMf_moving_foot`	`SE3`	Desired world pose of swing foot.	required
`oMf_torso`	`SE3`	Desired world pose of torso (only angular part is used).	required
`params`	`InvKinSolverParams`	Weights, model/data, damping, and optional locked joints.	required

Returns:

Name	Type	Description
`q_next`	`(ndarray, shape(nq))`	Integrated configuration `integrate(model, q, dq)`.
`dq`	`(ndarray, shape(nv))`	Generalized velocity solution (zeros for locked indices).

Notes

Builds a reduced QP on active velocity indices if locked_joints is set.
CoM task uses Pinocchio jacobianCenterOfMass.
Torso task selects angular rows via S = [0 I; 0 0].
QP is solved with qpsolvers.solve_qp(..., solver="osqp").
