Integration in physical simulator

Introduction

The simulation module validates the entire walking control pipeline, from ZMP-based pattern generation to joint-space motion execution. It provides a reproducible environment to test the controller under realistic dynamics. The robot is simulated in PyBullet, which integrates forward dynamics and computes contact forces during each support phase. The module reproduces the walking sequence defined by the preview controller, including single and double support phases, ZMP transitions, and foot exchanges. The reference trajectories of the center of mass (CoM) and feet are generated by the LIPM + preview control model, then projected into joint space through the inverse-kinematics solver based on Pinocchio.

At each timestep, the Pinocchio kinematic model is updated using the robot state from PyBullet. The desired joint positions are then computed and applied through position control, ensuring consistency between the kinematic model and the simulated robot.

Example

In this example, the controller and inverse-kinematics modules are integrated into PyBullet to test the walking pattern in a simulated environment. The xhost command is only required if you want to display the GUI interface:

xhost +local:root
docker run --rm -it \
  --env DISPLAY \
  -v /tmp/.X11-unix:/tmp/.X11-unix:ro \
  --device /dev/dri:/dev/dri \
  ghcr.io/rdesarz/biped-walking-controller \
  python examples/example_4_physics_simulation.py \
  --path-talos-data "/" --launch-gui --plot-results

You should get a visualization of the simulation such as the one below:

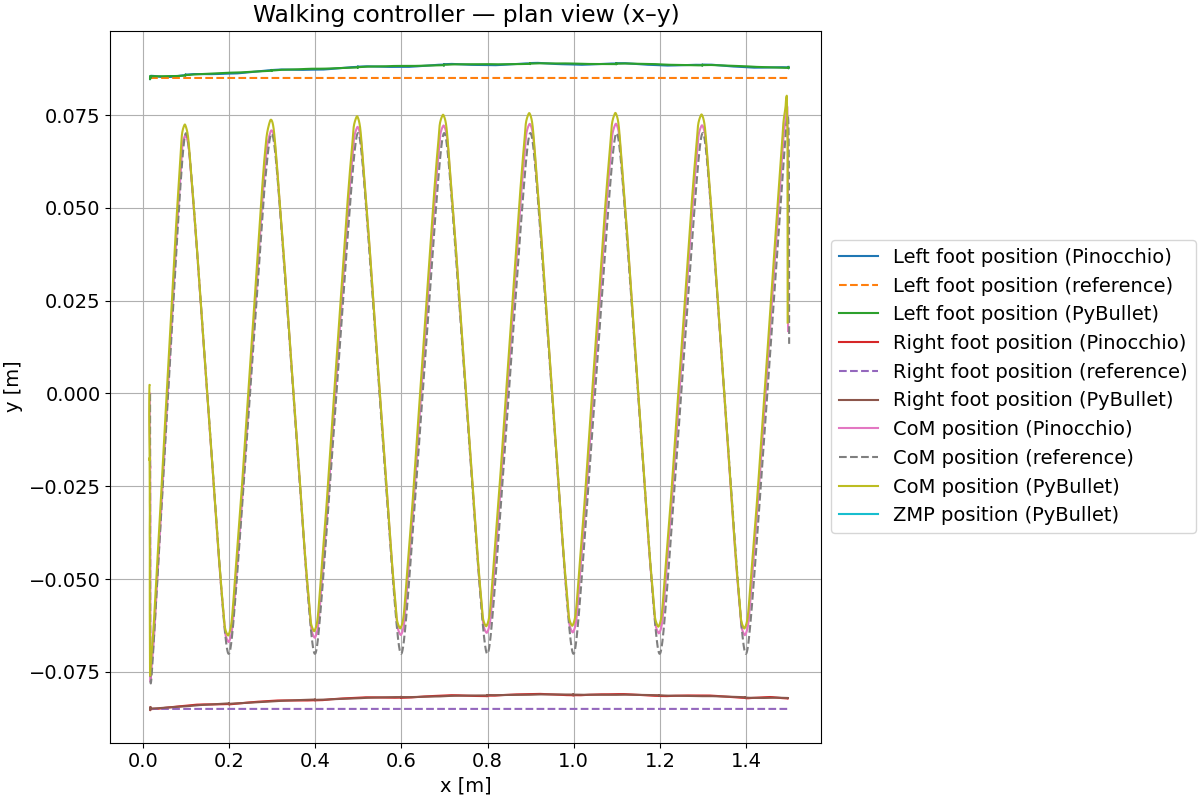

At the end of the walking sequence, a plot should be displayed. It plots the position of the CoM and foot trajectories on x and y axis:

Code API

The simulation module provides all components required to initialize and manage the physics simulation. It simplifies interaction with the robot, including data extraction and joint configuration. The Simulator class currently implements this interface using PyBullet as the physics backend.

Simulator

Simulator(dt, path_to_robot_urdf, model, launch_gui=True, n_solver_iter=200)

Thin PyBullet wrapper for loading a robot URDF and driving it from joint positions/velocities. Also exposes utilities for camera control, contact-force/ZMP computation, and setter/getter for joints configuration. The robot is loaded at the origin and a flat horizontal plane is added at z=0.

Initialize PyBullet, load ground and TALOS, and set physics.

Parameters:

Name	Type	Description	Default
dt	float	Fixed simulation time step in seconds.	required
path_to_robot_urdf	Path	Base path containing the URDF data.	required
model	Any	Pinocchio model container used to build pb↔pin joint maps. Must expose model for velocity map construction.	required
launch_gui	bool	If True, starts PyBullet with GUI. Otherwise uses DIRECT mode.	True

Side Effects

• Connects to PyBullet and configures gravity, time step, and engine params.
• Loads a plane and the TALOS robot in the world.
• Builds maps from PyBullet joint indices to Pinocchio q/v indices.

step

step()

Advance the physics simulation by one fixed time step.

Notes

Uses the engine time step configured in __init__.

reset_robot_configuration

reset_robot_configuration(q)

Hard-reset robot state from a configuration vector.

Parameters:

Name	Type	Description	Default
q	(ndarray, shape(nq))	Full Pinocchio configuration, including free-flyer (7). Applied to PyBullet base + joints via helper mapping.	required

apply_joints_pos_to_robot

apply_joints_pos_to_robot(q)

Send position targets to PyBullet joint position controllers.

Parameters:

Name	Type	Description	Default
q	(ndarray, shape(nq))	Desired configuration in Pinocchio ordering.	required

apply_joints_vel_to_robot

apply_joints_vel_to_robot(v)

Send joint-space velocity targets to the simulator.

Parameters:

Name	Type	Description	Default
v	(ndarray, shape(nv))	Desired generalized velocities in Pinocchio ordering.	required

get_q

get_q(nq)

Read the current configuration vector from PyBullet.

Parameters:

Name	Type	Description	Default
nq	int	Total configuration size expected by Pinocchio.	required

Returns:

Type	Description
(ndarray, shape(nq))	Configuration with base pose first (x,y,z, qw,qx,qy,qz), then joints.

update_camera_to_follow_pos

update_camera_to_follow_pos(x, y, z)

Aim the debug camera at a world position.

Parameters:

Name	Type	Description	Default
x	float	Target position in world frame for the camera to look at.	required
y	float	Target position in world frame for the camera to look at.	required
z	float	Target position in world frame for the camera to look at.	required

Notes

Keeps distance, yaw, and pitch fixed.

get_contact_forces

get_contact_forces()

Return the net x-axis contact forces for the right and left foot.

The method queries PyBullet for contacts between the robot and the ground on each foot link, then uses the private helper _compute_force(...) to aggregate the force component along the world x-axis.

Requirements

• self.robot_id : int PyBullet body id of the robot.
• self.plane_id : int PyBullet body id of the ground/plane.
• self.rf_link_id : int Link index of the right foot.
• self.lf_link_id : int Link index of the left foot.
• _compute_force(contacts) -> tuple[float, Any] Helper that returns the x-axis force [N] as its first element. It should return 0.0 if contacts is empty.

Returns:

Type	Description
(float, float)	(Fx_right, Fx_left) in Newtons, world frame.

Notes

• Only contacts with bodyA=self.robot_id, bodyB=self.plane_id, and linkIndexA equal to the corresponding foot link are considered.
• If a foot has no active contacts, its returned force is expected to be 0.0.
• This method assumes _compute_force already applies the correct Newton third-law sign convention to yield the force exerted on the robot.

draw_points

draw_points(points, colors=None, point_size=5)

Draw or update a set of debug points.

Parameters:

Name	Type	Description	Default
points	(array - like, shape(N, 3))	World coordinates of points.	required
colors	(array - like, shape(N, 3))	RGB colors in [0,1] per point.	None
point_size	int		5

Notes

Uses a persistent debug item so updates replace the existing set (for performance reasons)

get_robot_com_position

get_robot_com_position()

Compute the whole-body center of mass in world coordinates.

Returns:

Type	Description
list[float]	[x, y, z] position of the CoM in the world frame.

Method

• Retrieves base inertial COM, then iterates articulated links.
• Mass-weights each link COM and normalizes by total mass.

get_robot_pos

get_robot_pos()

Get the floating base world pose.

Returns:

Type	Description
tuple[list[float], list[float]]	(position [x,y,z], quaternion [x,y,z,w]) in world frame.

get_robot_frame_pos

get_robot_frame_pos(frame_name)

Get world pose of a named link frame.

Parameters:

Name	Type	Description	Default
frame_name	str	Name of the link in the URDF.	required

Returns:

Type	Description
tuple[tuple[float, float, float], tuple[float, float, float, float]]	(position, quaternion) of the link frame in world. Uses PyBullet forward kinematics.

Raises:

Type	Description
KeyError	If frame_name is not found.

get_zmp_pose

get_zmp_pose()

Estimate the Zero-Moment Point using contact wrenches against the plane.

Returns:

Type	Description
ndarray | None	[px, py, 0.0] in world if vertical force Fz != 0, else None.

Method

• Iterates robot–plane contact points.
• Accumulates total contact force F and moment M about world origin using r × f at the contact position.
• ZMP on the ground plane is computed as: px = -M_y / F_z, py = M_x / F_z.

Notes

This assumes a flat ground at z=0 and uses only normal forces reported by PyBullet at each contact.
